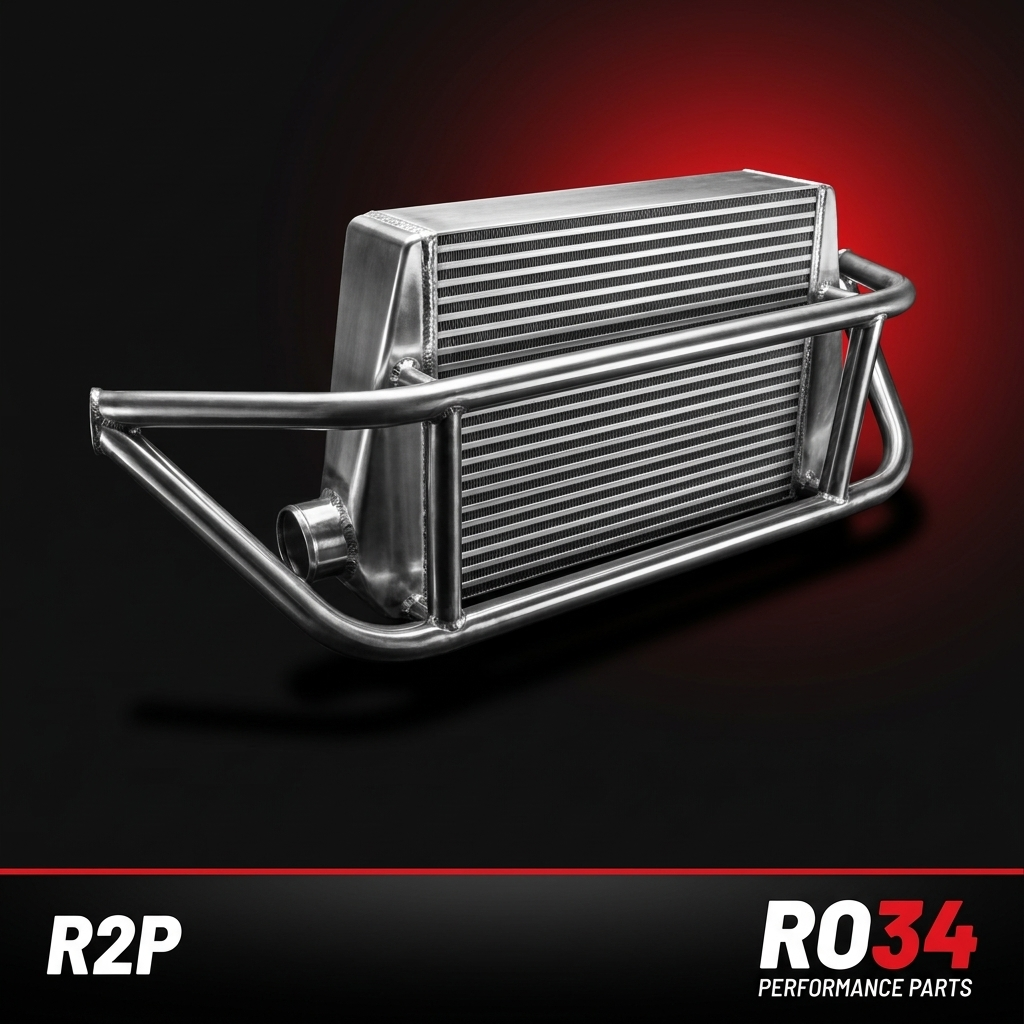

R2P Front Intercooler Kit + Crash Bar (CSF 1000HP Core) – High Performance for VW Golf GTI/R and Audi S3

The R2P MQB/EVO4 True Front Mount Intercooler + Crash Bar Kit combines high-performance cooling with structural safety, designed specifically for 2.0T engines on Volkswagen and Audi's MQB and EVO4 platforms. Unlike other kits that force you to cut the original crash bar, R2P includes a 1.5" chromoly steel bar that reinforces the vehicle's integrity while housing a 1000 HP-capable CSF core. If you're after consistent performance on track or for Stage 2 and 3 builds, this system is the ultimate solution to eliminate heat soak and gain consistency.

Features

• CSF 1000HP Bar-and-Plate core — Superior heat exchange for extreme builds and track use.
• 1.5" chromoly crash bar — Maintains the vehicle's structural protection without modifying the original chassis.
• 7.5 kg reduction on the front axle — Improves dynamic balance and steering response.
• 15°C drop in intake air temperature (IAT) — Consistent power with no heat-related losses, even during long track sessions.
• Water-jet-cut, hand-welded aluminum end tanks — Maximum durability and a professional finish.

Technical specifications

• Type: True Front Mount Intercooler (FMIC) + Crash Bar Kit
• Core: CSF Bar-and-Plate (1000HP capacity)
• Inlet / Outlet: 2.5" (63mm) / 2.75" (70mm)
• Bar material: 1.5" chromoly steel (Chromoly)
• Kit weight: 19.7 kg (versus ~27.2 kg for the OEM system)
• Fitment: Compatible with radar sensors (optional) and original mounting points

Compatibility

MQB Platform (2015 – 2021)

• Volkswagen Golf MK7 / MK7.5 GTI and R
• Audi A3 / S3 (8V)

EVO4 / MQB Evo Platform (2021+)

• Volkswagen Golf MK8 GTI and R
• Audi A3 / S3 (8Y)

Why a front-mount intercooler?

Most MQB intercoolers install in the original "sandwich" location, between the radiator and condenser, where airflow is limited. The R2P kit mounts the intercooler in a true front position, receiving direct fresh air without obstructions. While other FMIC kits force you to remove or cut the safety bar, R2P replaces it with a high-strength chromoly bar, uniting safety and performance in a single package.

Frequently asked questions

Is cutting the bumper necessary?
A minimal trim on the inner part of the bumper is required for a perfect fit, but it does not affect the exterior appearance.

What about the front radar sensor (ACC)?
The kit includes an optional dedicated bracket to maintain radar functionality on MK7 Pre-Facelift models.

Can I keep the original intercooler installed?
Yes, the kit allows you to leave the original intercooler in place or install delete brackets (not included in this package).

Shipping and warranty

Available for immediate order. Fast shipping nationwide. Fitment guarantee for MQB and EVO4 platforms. Check availability for custom fabrication if your vehicle requires specific adaptations.
