R2P Performance Turbo System
Couldn't load pickup availability
Questions about this product?

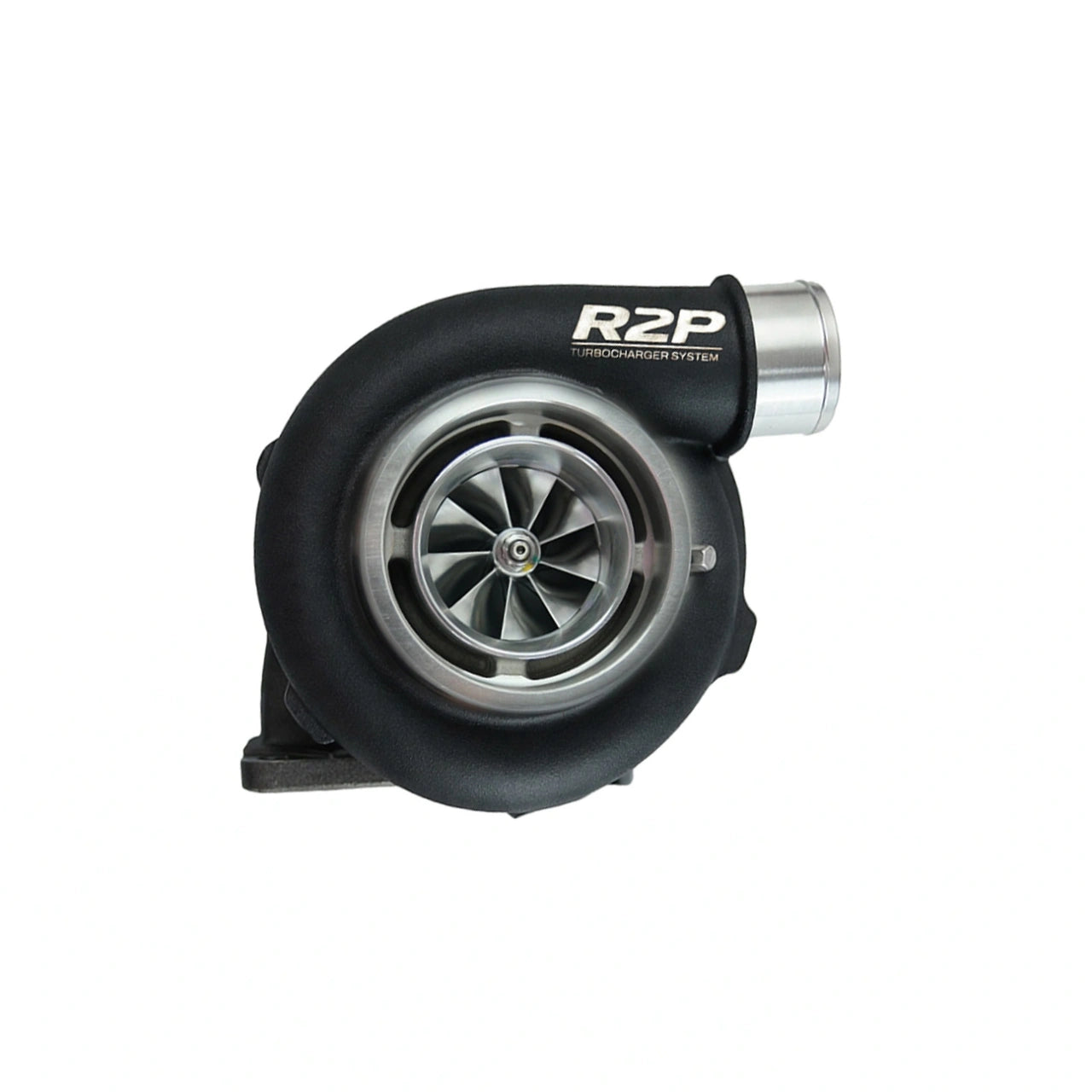

The R2P RR3076 is a high-performance turbocharger designed for 1.8L to 3.0L engines targeting between 400 and 750 HP. Equipped with a GTX3076R Gen II compressor wheel with compound geometry (53mm inducer / 76mm exducer), this turbo offers an extended efficiency map, a machined port for a speed sensor, and a free-float bearing system for maximum reliability on track and street.
Key features
- GTX3076R Gen II compressor wheel: second-generation aerodynamic geometry with an extended efficiency island and higher pressure ratio
- Machined port for speed sensor: allows real-time monitoring of shaft RPM (sensor not included, sold separately)
- T3/T4 Bolt flanges: direct compatibility with aftermarket exhaust manifolds common in sport builds
- Free-float bearing system: floating bearings that guarantee stability and durability at high RPM
- Reverse rotation option: available for special mounting configurations in competition projects
Technical specifications
| Technical data sheet | |
| Reference | R2P RR3076 / GTX3076R-53 |
| Brand | R2P Performance |
| Product type | Performance turbocharger |
| Compressor wheel (inducer x exducer) | 53 x 76 mm – compound geometry |
| Turbine wheel | 101.6 x 51 mm |
| Compressor A/R | 0.60 |
| Compressor housing | 55 x 60 mm |
| Turbine A/R | 0.63 |
| Flanges | T3/T4 Bolt |
| Bearing system | Free float |
| Oil inlet | 7/16-24 x AN4 |
| Oil drain | M14x1.5 |
| Power range | 400–750 HP |
| Compatible displacement | 1.8L – 3.0L |
| Maximum shaft speed | 145,000 rpm |
Compatibility by displacement and application
| Displacement | Application | Power target |
| 1.8L | High-boost street / Track | 400–550 HP |
| 2.0L | Street / Track / Time Attack | 450–620 HP |
| 2.5L | Track / Drag | 550–700 HP |
| 3.0L | Track / Drag / Drift | 600–750 HP |
Important notices
- Do not exceed 145,000 rpm: over-revving can cause irreversible damage and voids the warranty. Installing a speed sensor (not included, available separately) is recommended to monitor shaft speed.
- For 1.8L to 3.0L engines only: this turbo is not suitable for displacements outside that range.
- Professional installation recommended: make sure to correctly configure the oil inlet (7/16-24 x AN4) and drain (M14x1.5) lines, as well as the cooling system.
- Mounting and accessories not included: the kit includes the complete turbocharger assembly (CHRA + compressor housing + turbine housing) and mounting hardware. Manifold, downpipe, intercooler, and speed sensor are sold separately.
Why choose R2P Performance
R2P Performance manufactures competition turbochargers proven in real track and street applications. The RR3076 model combines Gen II technology, compatibility with standard T3/T4 flanges, and a versatile power range (400–750 HP), ideal for high-performance projects that demand reliability, fast response, and repeatable performance maps.
Shipping and warranty
Shipping available nationwide. The turbocharger comes with a manufacturer's warranty; it does not cover damage from over-revving, incorrect installation, or lack of maintenance. For any technical questions, contact our team.
